The DrillSIM:10 is a multi-screen simulator solution offering compliance-based well control training for the driller and supervisor. The simulator builds on the existing DrillSIM software platform to meet IADC and IWCF standards

The DrillSIM:10 is a multi-screen drilling and well control simulator.

The interactive simulator offers a low price entry point to compliance-based well control training for the driller and supervisor.

The DrillSIM:10 is a multi-screen simulator solution offering compliance-based drilling and well control training for the driller and supervisor. It builds on the existing DrillSIM software platform to meet IADC and IWCF standards.

The interactive simulator includes on-screen versions of a drillers panel and controls, a choke panel and an instructor station which can be accessed on a tablet, laptop or desktop PC.

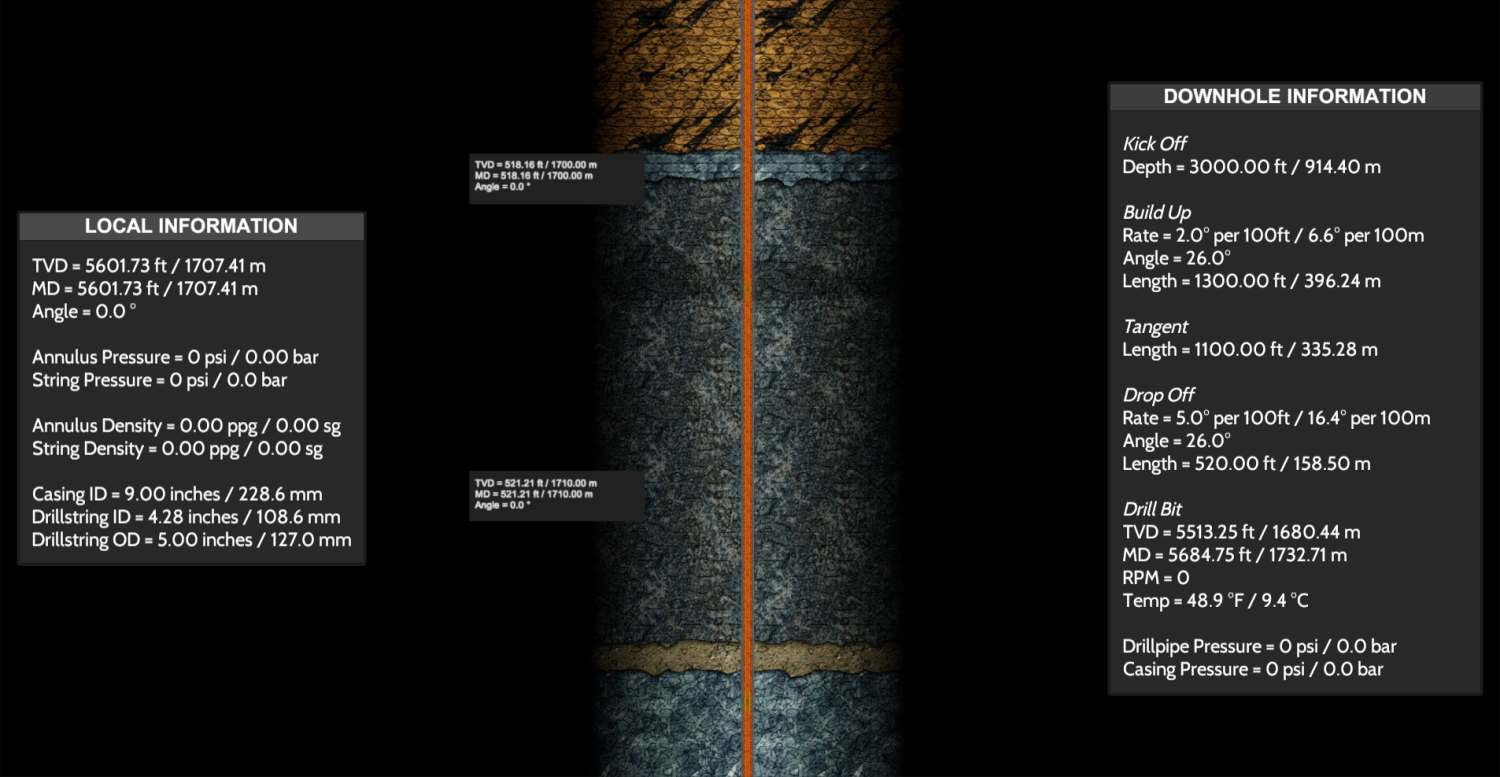

DrillSim Downhole Model

DrillSIM:10 includes the full DrillSIM downhole model which provides a dynamic 3D graphic visualisation of the actions taking place down a deviated well throughout a wide range of drilling operations.

Industry standards

DrillSIM:10 meets oil and gas drilling and well control training and accreditation standards set by IADC. It includes IADC and IWCF malfunctions required for well control accreditation.

Key benefits to your business

Low price entry point to drilling and well control training.

Trains operators to IADC and IWCF well control standards.

A fully portable simulator solution.

Run simulator software on existing hardware (subject to hardware meeting specification requirements) to save in equipment costs.

A desk displays a tablet, two monitors, and a laptop showing various technical interfaces and a video feed of an industrial site on a wall-mounted screen.
A desk displays a tablet, two monitors, and a laptop showing various technical interfaces and a video feed of an industrial site on a wall-mounted screen.
A desk displays a tablet, two monitors, and a laptop showing various technical interfaces and a video feed of an industrial site on a wall-mounted screen.
A desk displays a tablet, two monitors, and a laptop showing various technical interfaces and a video feed of an industrial site on a wall-mounted screen.

Key features of the DrillSIM:10

  • Tablet/laptop/desktop PC based
  • Interactive on-screen drilling panel and controls
  • Interactive on-screen choke panel
  • Instructor station
  • IADC and IWCF malfunctions required for well control accreditation
  • PDF generated well plots
  • Approved for well control training as part of the IADC WellSharp® accreditation programme
  • Optional 3D graphics

Key capabilities of the DrillSIM:10

The DrillSIM:10 can be utilised to develop and run exercises including, but not limited to:

  • Oil-based mud, bubble point and gas flash out
  • Gas expansion and migration
  • Dynamic pressures during well control
  • Formation fluid type and permeability
  • Bottom hole effects – equivalent circulating density, surge and swab
  • Horizontal and deviated wells
  • Rock strength and abrasiveness
  • Choke washout and plugging
  • IADC and IWCF required malfunctions
  • Drilling and tripping
