3t Drilling Systems

DrillSIM:5

The DrillSIM:5 is a fully portable solution that allows a single user to practice individual exercises away from a training centre at any time. When used in conjuction with the DrillSIM:Suite Manager this simulator offers the ability to create a sophisticated multi-station training environment

Make an Enquiry
In this section

The DrillSIM:5 is a software-based simulator that delivers a wide range of real-time drilling and well control simulations.

The software displays interactive on-screen versions of the control panels present in simulator hardware to ensure a realistic experience that provides the end user with proven reliability and confidence.

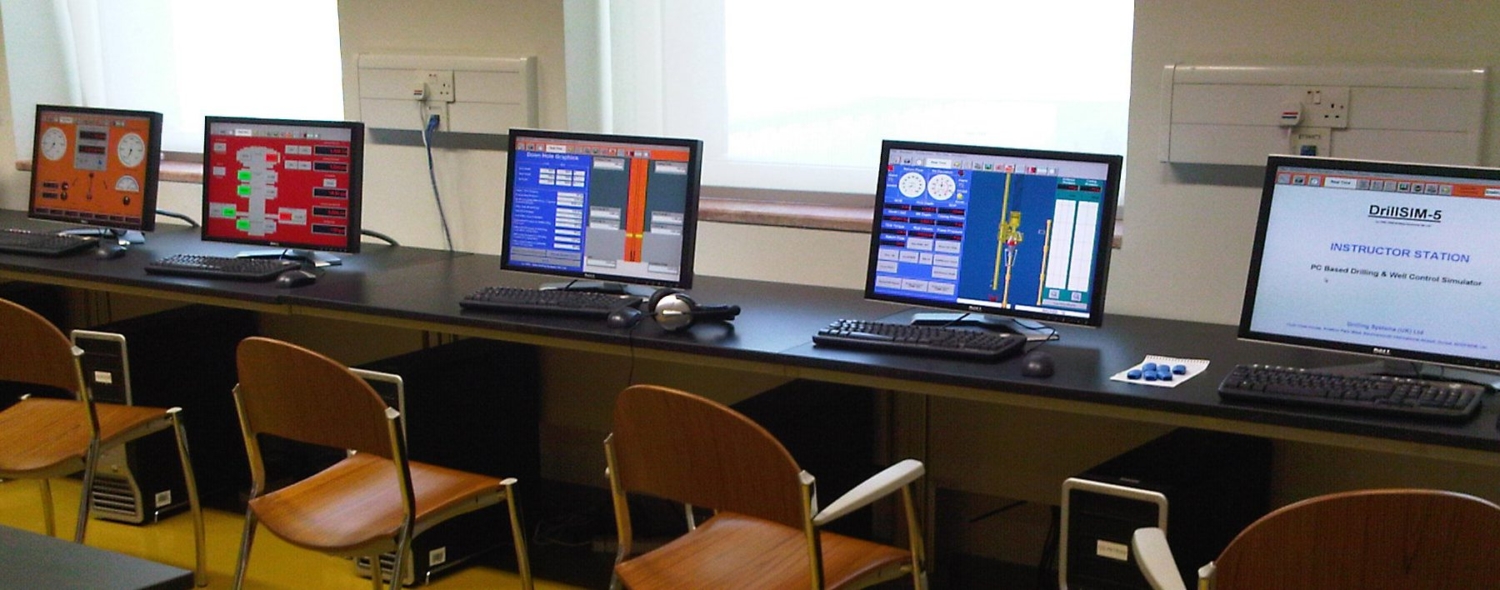

The DrillSIM:5 is a fully portable solution that allows a single user to practice individual exercises away from a training centre at any time or offers the ability to create a sophisticated multi-station training environment in the classroom when used in conjunction with DrillSIM:Suite Manager.

DrillSim Downhole Model

DrillSIM:5 includes the full DrillSIM downhole model which provides a dynamic 3D graphic visualisation of the actions taking place down a deviated well throughout a wide range of drilling operations.

Find out more

Industry standards

A DrillSIM software package license can be added to DrillSIM:5 to create a multi-station training environment. Simulations can be observed, monitored and managed from one central instructor station that provides data on the student activity and progress on each simulator.

Industry standards

DrillSIM:5 introduces oil and gas drilling and well control training and accreditation standards set by IWCF and IADC.

Key benefits to your business

Training at a time and place convenient for the user.

Deepens the understanding of well control principles.

Enhance classroom teaching with interactive, high-fidelity simulations.

Allow trainees to practice in their own time, at their own pace.

Key features of the DrillSIM:5

  • Laptop/PC based
  • Land and offshore capabilities
  • Unlimited exercises (snapshots)
  • Individual or team exercises
  • Similar operating capabilities of DrillSIM hardware
  • Interactive on-screen control panels
  • Supports a multi-station training environment with up to 20 connected units when used in conjunction with the DrillSIM:Suite Manager or DrillSIM:Educator package
  • Full DrillSIM downhole model capabilities

Key capabilities of the DrillSIM:5

The DrillSIM:5 can be utilised to develop and run exercises including, but not limited to:

  • Oil-based mud, bubble point and gas flash out
  • Gas expansion and migration
  • Dynamic pressures during well control
  • Formation fluid type and permeability
  • Bottom hole effects – equivalent circulating density, surge and swab
  • Horizontal and deviated wells
  • Sloughing, differential sticking, key seating, pack-off
  • Rock strength and abrasiveness
  • Choke washout and plugging
  • IADC and IWCF required malfunctions
  • Drilling and tripping
