DrillSIM:5000 Cyber

Introducing the DrillSIM:5000 Cyber, your versatile and cost-effective solution for advanced drilling and well control simulation. This simulator sets the global standard, offering a tactile experience with cyber controls and a 3D quad-screen display that immerses trainees in a modern rig environment complete with joystick controls.

The DrillSIM:5000 Cyber provides versatile and affordable drilling and well control simulation to a global standard.

The cyber controls and 3D quad-screen graphics create a highly realistic and immersive simulated environment of a modern rig with joystick controls.

Both simple and highly complex tasks and scenarios can be recreated to verify skills and competency in real-world situations.

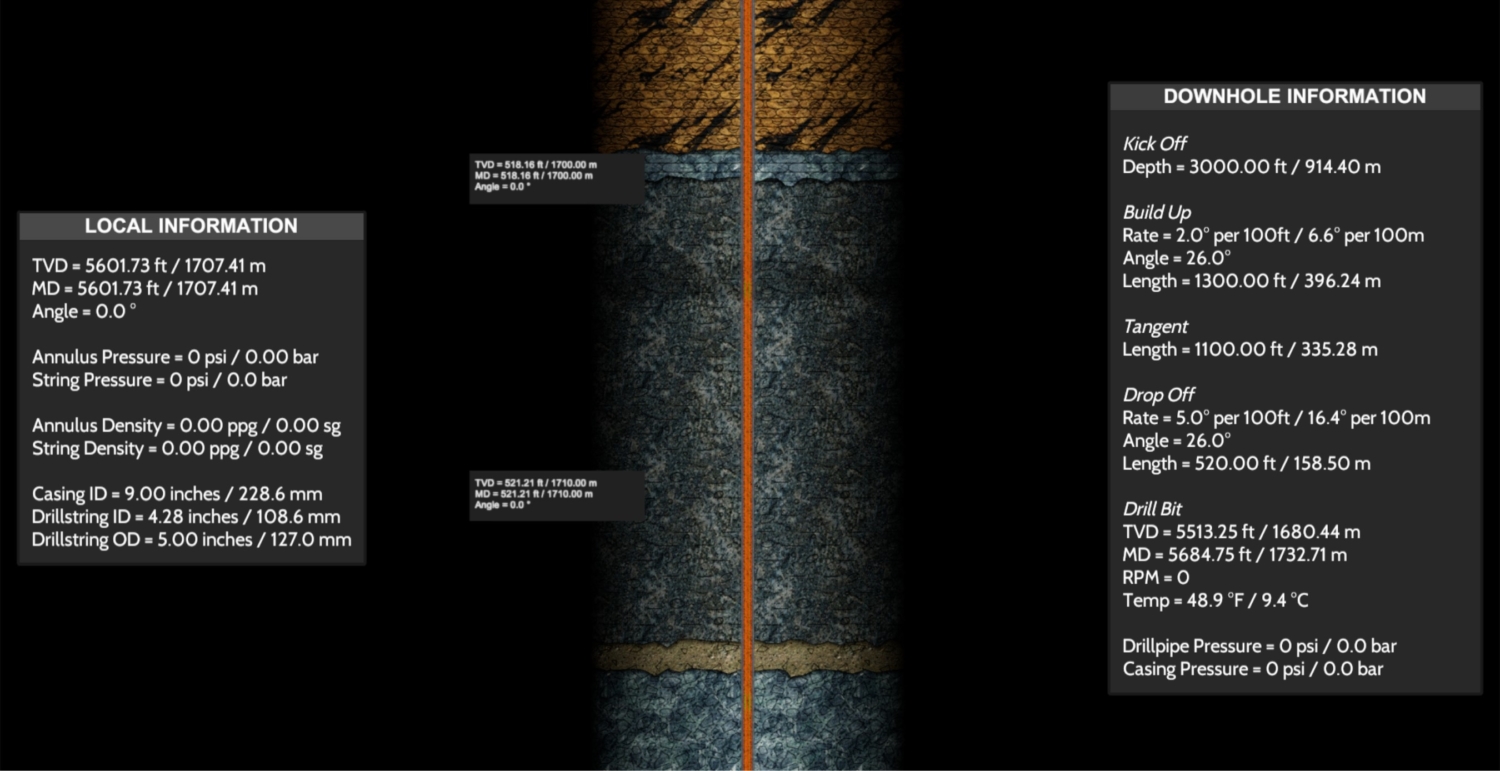

DrillSim Downhole Model

DrillSIM:5000 Cyber includes the full DrillSIM downhole model which provides a dynamic 3D graphic visualisation of the actions taking place down a deviated well throughout a wide range of drilling operations.

DrillSim Suite Manager

A DrillSIM software package license can be added to DrillSIM:5000 Cyber to create a multi-station training environment. Simulations can be observed, monitored and managed from one central instructor station that provides data on the student activity and progress on each simulator.

Industry Standards

DrillSIM:5000 Cyber meets and exceeds oil and gas drilling and well control training and accreditation standards such as IADC Driller and Supervisor and IWCF levels 3 and 4.


The DrillSIM:5X range offers multiple options dependant on individual requirements and the size or scale of an operation.

Key benefits to your business

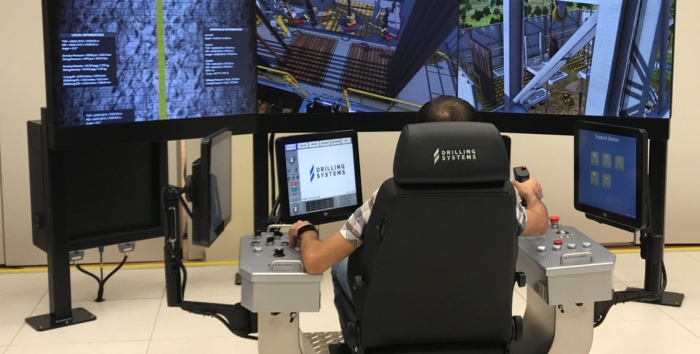

3D graphics and cyber chair with built-in cyber drilling controls.

Low price entry point to full-size drilling and well control simulators.

Reduce non-productive time and increase efficiency by simulating operations in a dynamic environment before carrying them out in the field.

Trainees can understand the consequences of their actions in various drilling operations with 3D visualisation of what is happening on the surface and downhole.

Key features of the DS:5000 Cyber

  • Cyber chair with built-in controls
  • Large thin bezel quad-screen display
  • Realistic 3D graphic visualisations
  • Both land and offshore capability
  • Full DrillSIM downhole model capabilities

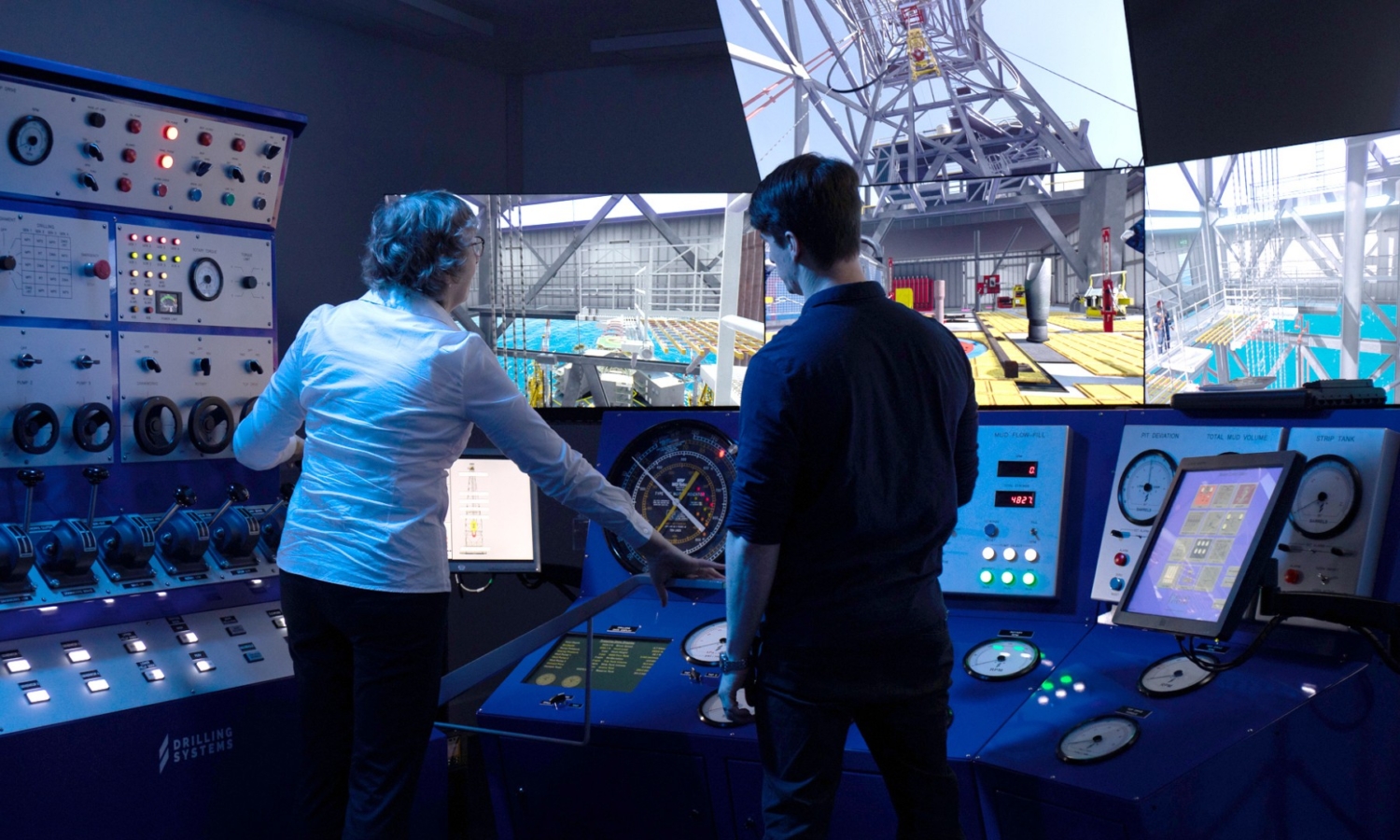

  • Optional range of full-size additional consoles including BOP and manifolds

Key capabilities of the DS:5000 Cyber

The DrillSIM:5000 Cyber can be utilised to develop and run exercises including, but not limited to:

  • Oil-based mud, bubble point and gas flash out
  • Gas expansion and migration
  • Dynamic pressures during well control
  • Lost circulation, loss zones and leak off testing
  • Wellbore ballooning/breathing
  • Horizontal and deviated wells
  • Hole cleaning, turbulent, laminar flow
  • Drilling on junk, pipe twist-off, stuck pipe
  • Sloughing, differential sticking, key seating, pack-off
  • High pressure high temperature (HPHT) wells
  • Managed pressure drilling (MPD)
  • Drilling and tripping

… and many more.

Setting the standard

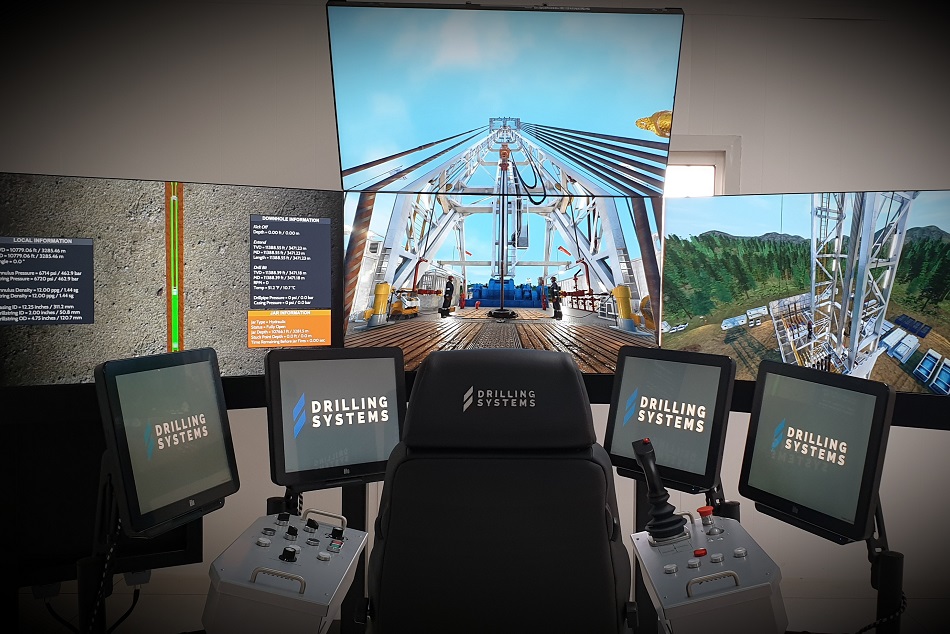

“The ability to practice a wide range of high-risk operational scenarios in safety is one of the most valuable tools of simulation and it is events that cannot be replicated on the job where competency can truly make a difference. This is a fantastic resource, which will put Saipem personnel at the forefront of global drilling and competency standards and will help to cement our reputation for technical excellence.”

Ben Saipen, SAS Drilling Instructor, Saipem

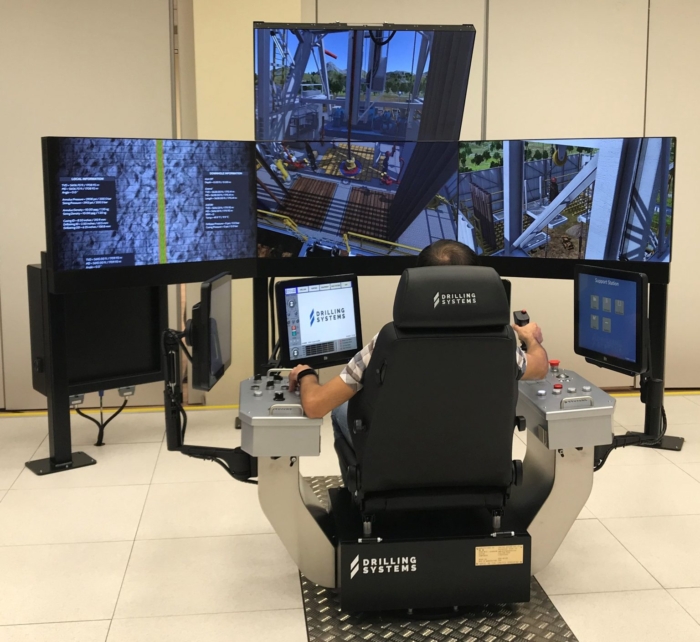

DrillSim 5000 Cyber Chair
